Switchboards

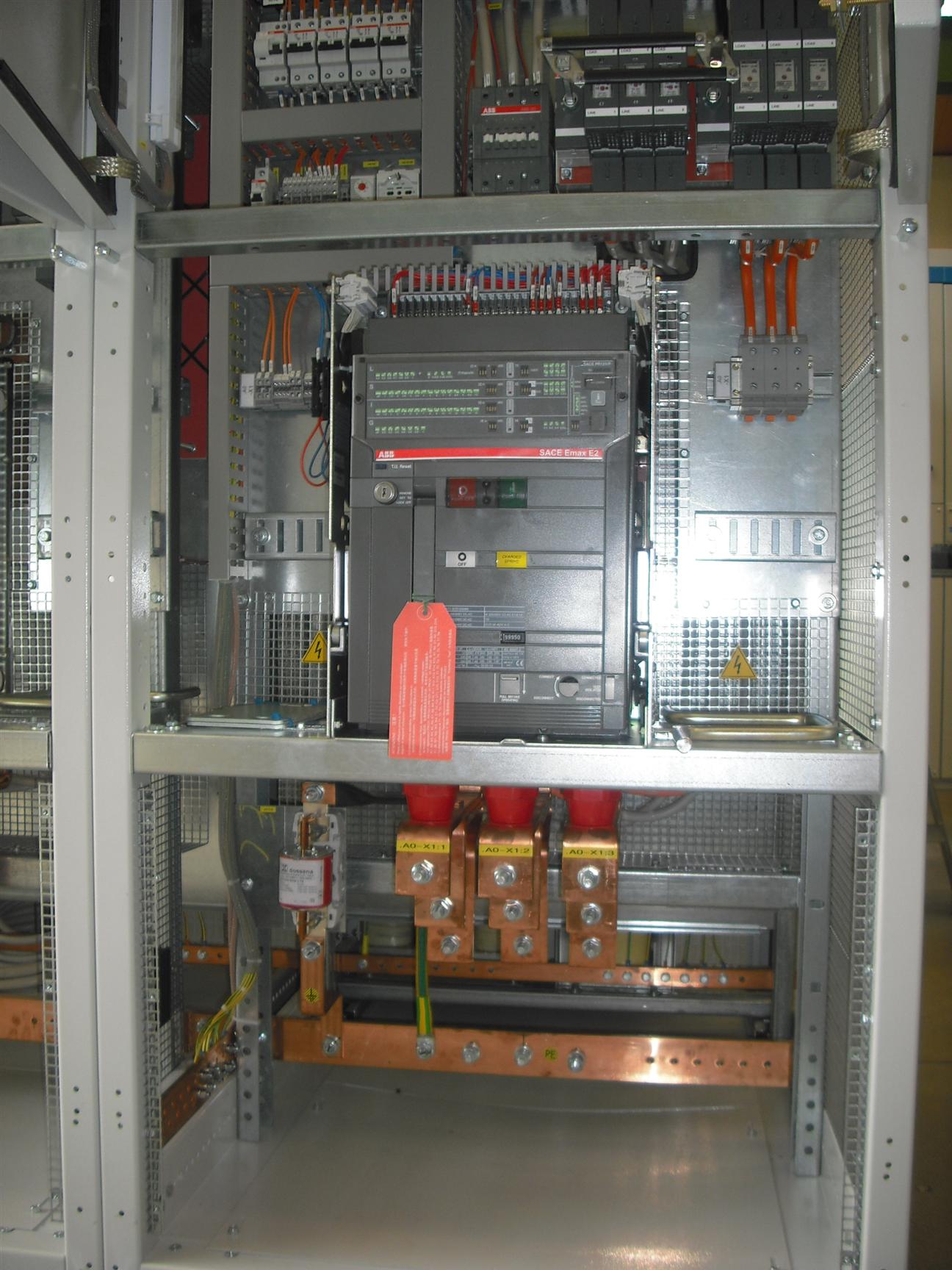

Construction of systems and construction of electrical panels for industry, too certificated UL. Planning and construction of industrial automation systems
La Sistem Power has absorbed highly qualified technicians achieving a high technical capacity, acquired for decades in the field, in the design, construction and start-up of industrial plants such as: TNT felt production lines, paper production lines, production lines Film Bopp, Tape production lines, Winders and unwinders in the Paper sector, Winders and Unwinders in the TNT Felt sector, etc. etc. ICP and CF series inverter for stirrer control
The latest generation ICP and CF series inverters are devices designed to generate and control the magnetic field necessary for stirrers in the steel industry. The series of inverters CF (certificated UL) is removable while the series of ICP inverters is not removable.
By varying the agitator control current (module and frequency) the magnetic fields are consequently modified.
The equipment consists of two distinct bridges: the first AC / DC with diodes, allows the conversion of the three-phase mains voltage into fixed direct voltage while, the second DC / AC with IGBT, provides for the conversion into variable voltage and frequency.
The two frequency and current channels are independent of each other, therefore it is possible to set the desired working point of each quantity according to the reference parameters.
The inverter also provides for the insulation control of the stirrer coil by means of an integrated uP system which verifies the earth leakage of the coil at each start.
The inverter control system consists of a DSP with PU300 operator interface for parameter modification, local management and alarm display; also provides for the management of the automation system remotely (PLC) through the integrated Profibus-DP interface.
The equipment is an open machine and is completed by installing it inside an electrical panel with the various devices upon completion. FFE power and control modules

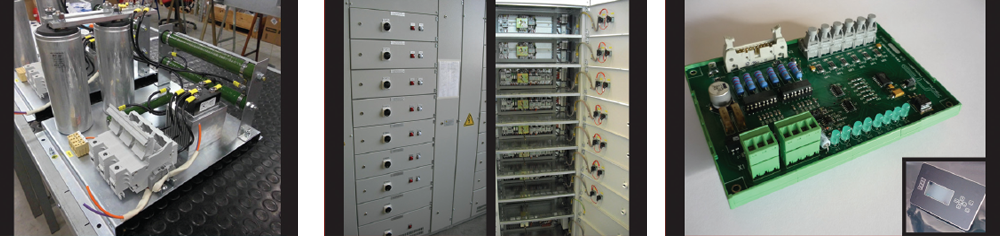

Construction and supply of intelligent IGBT inverter modular units for DC-LINK power supply and recovery in order to create an FFE (Fundamental Front End) which provides for the regeneration in the network and the pre-charging of the inverters powered in the emergency phase and / or dynamic braking.
In addition to fulfilling the various functions described above, the power unit also provides the possibility of carrying out the parallel of several modules by means of a uP device integrated on the interface circuit.
La Sistem Power has a uP Control Rack for the FFE units and for the 6-pulse and 12-pulse AC / DC converters called CU-DR01 with PU600 operator interface for parameter modification, local management and alarm display; it also provides for the management of the automation system remotely (PLC) through the integrated Profibus-DP interface. MF power modules
Construction and supply of modular inverters with H bridge, in MF (10KHz), with IGBT, for application on induction furnaces in the steel sector.

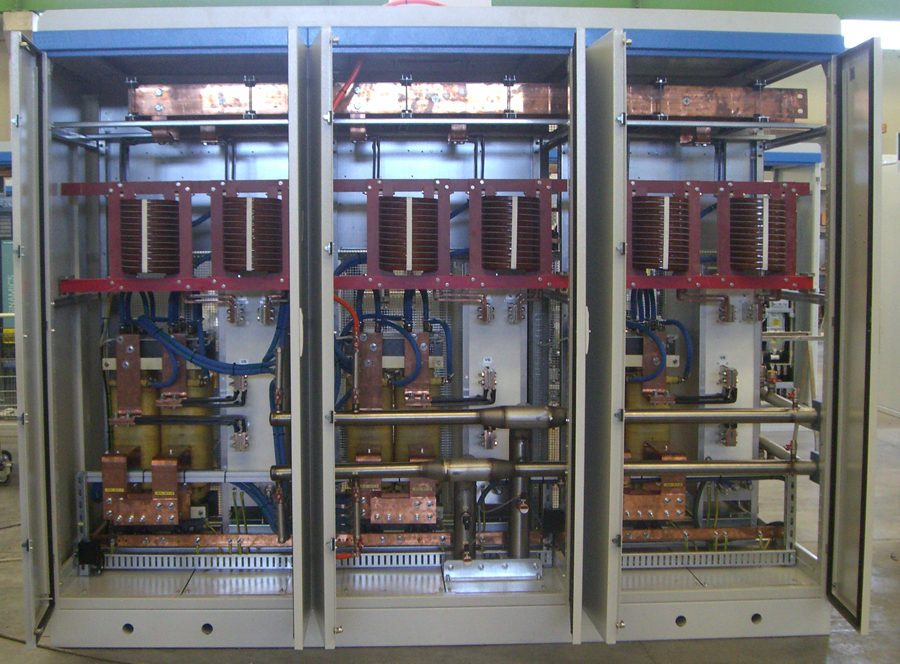

These units are cooled with deionized water through a piping system. MT power modules
Construction and supply of inverter power units, in MV (3.3KV), with IGBT, for powering large motors suitable for controlling electric fans and pumps. These units are cooled with deionized water through a piping system.
2) AUTOMATION
2.1 Development of automation system for:
- Paper production lines
- Tissue Non-woven fabric production lines
- Polypropylene film production lines with and without coating
- Glass industry
- Command and control panels for winders and / or unwinders for the textile industry (synthetic and non-synthetic), for the paper mill and the plastic industry
- Coiler for hydraulic and oleodynamic pipes
